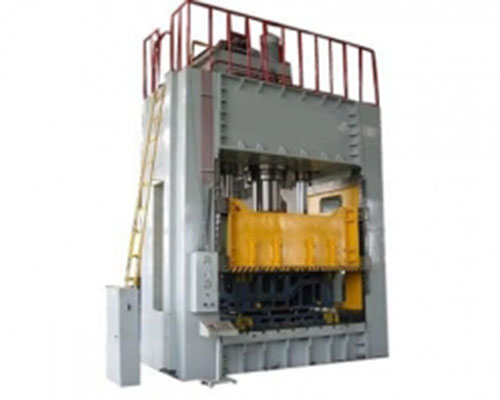

Performance characteristics: Optimized by computer design, the four column structure is simple, economical, and practical; The frame structure has good rigidity, high precision, and strong resistance to eccentric loads; The hydraulic control system adopts a plug-in integrated system, which is reliable in action, has a long service life, has low hydraulic impact, and reduces the connection of pipelines and leakage points; The electrical system controlled by imported PLC is compact in structure, sensitive and reliable in operation, and easy to use and maintain. It has three operating modes: adjustment, manual, and semi-automatic, as well as two molding process specifications: fixed range and fixed pressure. The bottom beam is equipped with hydraulic pads, which can be selected through the operation panel to achieve three working cycles: with top out, without top out, and with hydraulic pad edge pressing.

Applicable fields: This series of presses is suitable for various stamping processes such as deep drawing, bending, forming, punching and cutting, and flanging. It is particularly suitable for the following fields: automotive parts, household appliances, kitchen utensils, and others: tractors, motorcycles, aerospace, and aviation.

Optional accessories: · Mobile worktable · Punching buffer device · Light curtain safety protection device · Oil cooling device · Displacement sensing device · Touch industrial display screen · Material feeding device (hydraulic or mechanical) · Mold quick clamping mechanism · Mold protection device · Imported PLC · Rail lubrication device.
